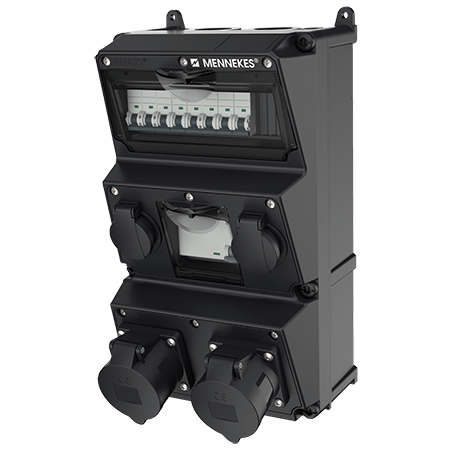

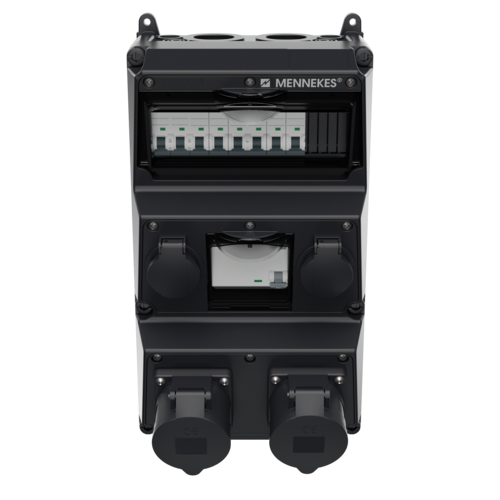

AMAXX receptacle combination 930278SW

Name: AMAXX receptacle combination
Brand: MENNEKES
SKU: 930278SW

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

CEE 32 A, 5 p, 400 V

CEE 16 A, 5 p, 400 V

SCHUKO®

pre-wired for installation
hinged to the side

enclosure and insert made of AMAPLAST
fusing behind a transparent cover

Art.nr.930278SW
EAN4015394262060
Std. Packa. 1 Antal.

Tekniska specifikationer

AMAXX receptacle combination 930278SW

CEE 32 A, 5 p, 400 V	1
CEE 16 A, 5 p, 400 V	1
SCHUKO®	2
Säkring	1 RCD 40 A, 4 p, 0.03 A 1 MCB 32 A, 3 p, C 1 MCB 16 A, 3 p, C 2 MCB´s 16 A, 1 p, C
Anslutning / Matningsledning	for 2 cables up to 5 x 25 mm²
Skyddstyp	IP44
Kapslingsmaterial	plast
Vikt	5520 g
Höjd	390 mm
Bredd	225 mm
